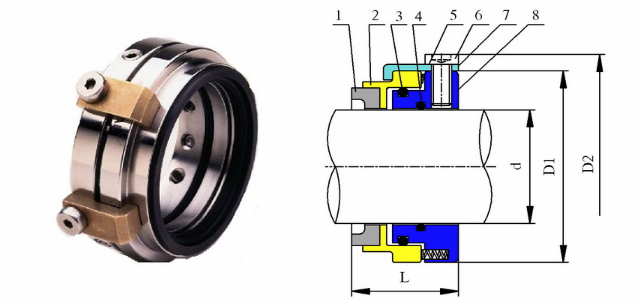

1 | FACE | CARBON/SIC/TC |
2 | RETAINER | 316SS |
3 | O-RING | VITON/EP/NIT |
4 | O-RING | VITON/EP/NIT |
5 | SPRING | 316SS |
6 | SETTING RING | 316SS/BRASS |
7 | SCREW | 316SS |
8 | BASE PLATE | 316SS |
Size Chart (Inch) | Size Chart (mm) | |||||||
Seal Size d | L | D1 | D2 | Seal Size d | L | D1 | D2 | |
1.000 | 1.096 | 1.834 | 2.618 | 24.0 | 27.8 | 46.6 | 66.5 | |
1.125 | 1.096 | 1.992 | 2.776 | 25.0 | 27.8 | 47.6 | 67.5 | |
1.250 | 1.096 | 2.070 | 2.854 | 28.0 | 27.8 | 50.6 | 70.5 | |
1.375 | 1.096 | 2.187 | 2.971 | 30.0 | 27.8 | 50.6 | 70.5 | |
1.500 | 1.125 | 2.510 | 3.294 | 32.0 | 27.8 | 52.6 | 72.5 | |
1.625 | 1.125 | 2.510 | 3.294 | 33.0 | 27.8 | 55.5 | 75.4 | |
1.750 | 1.125 | 2.636 | 3.420 | 35.0 | 27.8 | 55.5 | 75.4 | |
1.875 | 1.125 | 2.760 | 3.544 | 38.0 | 28.6 | 63.8 | 83.7 | |
2.000 | 1.087 | 2.886 | 3.670 | 40.0 | 28.6 | 63.8 | 83.7 | |
2.125 | 1.087 | 3.014 | 3.798 | 43.0 | 28.6 | 67.0 | 86.9 | |
2.250 | 1.087 | 3.139 | 3.922 | 45.0 | 28.6 | 67.0 | 86.9 | |
2.375 | 1.087 | 3.264 | 4.048 | 48.0 | 27.6 | 73.3 | 93.2 | |
2.500 | 1.087 | 3.388 | 4.172 | 50.0 | 27.6 | 73.3 | 93.2 | |
2.625 | 1.250 | 3.556 | 4.340 | 53.0 | 27.6 | 76.6 | 96.5 | |
2.750 | 1.250 | 3.681 | 4.465 | 55.0 | 27.6 | 76.6 | 96.5 | |
2.875 | 1.250 | 3.806 | 4.590 | 58.0 | 27.6 | 82.9 | 102.8 | |
3.000 | 1.250 | 3.931 | 4.715 | 60.0 | 27.6 | 82.9 | 102.8 | |
3.125 | 1.250 | 4.056 | 4.840 | 63.0 | 27.6 | 86.1 | 106.0 | |
3.250 | 1.250 | 4.181 | 4.965 | 65.0 | 31.7 | 90.3 | 110.2 | |
3.375 | 1.250 | 4.306 | 5.090 | 68.0 | 31.7 | 93.5 | 113.4 | |
3.500 | 1.250 | 4.431 | 5.215 | 70.0 | 31.7 | 93.5 | 113.4 | |
3.625 | 1.250 | 4.556 | 5.340 | 75.0 | 31.7 | 99.8 | 119.7 | |
3.750 | 1.250 | 4.681 | 5.465 | 80.0 | 31.7 | 103.0 | 122.9 | |
3.875 | 1.250 | 4.806 | 5.590 | 85.0 | 31.7 | 109.4 | 129.3 | |
4.000 | 1.250 | 4.931 | 5.715 | 90.0 | 31.7 | 115.7 | 135.6 | |
95.0 | 31.7 | 118.9 | 138.8 | |||||
100.0 | 31.7 | 125.2 | 145.1 |
